Roland DXY-1100
  • Year of introduction None
  • Machine dimensions 613(W)x108(H)x417(D)mm
  • Weight 5.7 kg
  • Maximum plotting area X 431.8mm Y 297mm
  • Maximum plotting speed 420mm/sec
  • Paper size max 420x297mm(ISO A3) or 432x279mm (ANSI B size)
  • Paper holding Magnetic drawing board and strip holders
  • Distance accuracy Whichever the greater value of +-0.3% or +-0.1mm of moving distance
  • Repeat accuracy With same pen +-0.1mm or less, with different pen +- 0.3mm or less
  • Right angle accuracy 1mm/297mm
  • Display LED POWER/ERROR, PAUSE
  • Data buffer 5k byte
  • Interface Parallel (Centronics), Serial(RS-232C)
  • Number of pens 8
  • Maximum pen height None
  • Pen force None
  • Machine operating style flatbed or moving medium. (fixed paper, fixed y-axis)
  • Multipages False
  • State None
  • entry doors None

Roland DXY-1200
  • Year of introduction None
  • Machine dimensions 613(W)x108(H)x417(D)mm
  • Weight 5.7 kg
  • Maximum plotting area X 431.8mm Y 297mm
  • Maximum plotting speed 420mm/sec
  • Paper size max 420x297mm(ISO A3) or 432x279mm (ANSI B size)
  • Paper holding Electrostatic paper holder
  • Distance accuracy Whichever the greater value of +-0.3% or +-0.1mm of moving distance
  • Repeat accuracy With same pen +-0.1mm or less, with different pen +- 0.3mm or less
  • Right angle accuracy 1mm/297mm
  • Display LED POWER/ERROR, PAUSE, PAPER HOLD
  • Data buffer 5k byte
  • Interface Parallel (Centronics), Serial(RS-232C)
  • Number of pens 8
  • Maximum pen height None
  • Pen force None
  • Machine operating style flatbed or moving medium. (fixed paper, fixed y-axis)
  • Multipages False
  • State None
  • entry doors None

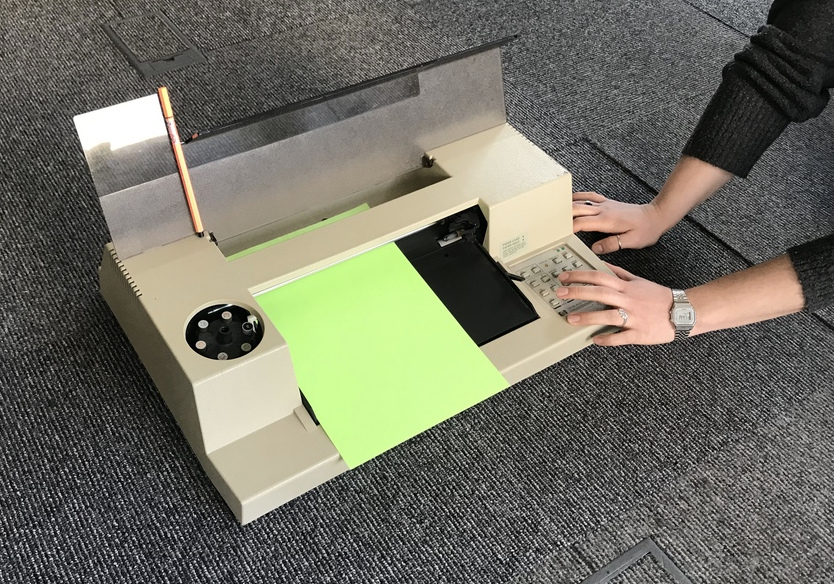

HP 7550A
  • Year of introduction 1984
  • Machine dimensions 215mm(H) x 670(W) x 432-896mm(D)
  • Weight 17.3kg
  • Max. plotting area 272mm (Pen axis), 411mm (Paper axis)
  • Max. plotting speed 80.0 cm/s
  • Max. Paper size 297 x 420mm (ISO A3)
  • Paper holding Rollers
  • Distance accuracy None
  • Repeat accuracy 0.1mm
  • Right angle accuracy None
  • Display LED None
  • Buffer Size 1024 bytes, expandable to 12 Kbytes
  • Interface None
  • Number of pens 8
  • Maximum pen height None
  • Pen force 15 to 66 grams
  • Machine operating style Paper moves in Y, pen in X
  • Multipages True
  • State None
  • entry doors None

Roland DPX-3500
  • Year of introduction None
  • Machine dimensions None
  • Weight None
  • Max. plotting area None
  • Max. plotting speed None
  • Max. Paper size A1
  • Paper holding Electrostatic paper holder
  • Distance accuracy None
  • Repeat accuracy None
  • Right angle accuracy None
  • Display LED None
  • Data buffer None
  • Interface None
  • Number of pens 8
  • Maximum pen height None
  • Pen force Adjustable within range
  • Machine operating style static paper
  • Multipages False
  • State None
  • entry doors None

HP DraftMaster II
  • Year of introduction 1987
  • Machine dimensions 1200mm(H) x 1346mm(W) x 508mm(D)
  • Weight 73kg
  • Max. plotting area None
  • Max. plotting speed 60.0 cm/s
  • Max. Paper size 36 x 48in. (Architectural E) / A0
  • Paper holding Rollers
  • Distance accuracy 0.09% of the move or 0.25mm, whichever is greater.
  • Repeat accuracy 0.1mm
  • Right angle accuracy None
  • Display LED None
  • Buffer Size 25K (configurable)
  • Interface None
  • Number of pens 8
  • Maximum pen height None
  • Pen force 15-66 grams
  • Machine operating style Paper moves in Y, pen in X
  • Multipages False
  • State None
  • entry doors None

Silhouette Cameo 3
  • Year of introduction 2016
  • Machine dimensions 57 cm x 22 cm x 15 cm
  • Weight 4.053kg
  • Max. plotting area 304.8mm x 304.8mm on mat, 8in x 10ft on roll
  • Max. plotting speed None
  • Max. Paper size 8in x 10ft
  • Max. Paper Thickness 2mm
  • Paper holding Rollers
  • Distance accuracy None
  • Repeat accuracy None
  • Right angle accuracy None
  • Display LED None
  • Data buffer None
  • Interface None
  • Number of pens 1
  • Maximum pen height None
  • Pen force up to 210gf
  • Machine operating style Paper moves in Y, pen in X
  • Multipages False
  • State None
  • entry doors None
